Movable Feeding Hopper PU Foam Bale Single Shaft Shredder 1200x1200Mm

원래 장소 CN
브랜드 이름 Joful
모델 번호 XRM1200
최소 주문 수량 1개 세트
가격 Negotiable
포장 세부 사항 EPE 거품 래핑한 포장인 영화
배달 시간 65 일로 일합니다
지불 조건 전신환
공급 능력 달 당 40 세트

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

제품 상세 정보
상품 이름 단축 문서 분쇄기, 플라스틱 박막 화물 문서 분쇄기, 영화 화물을 위한 쉬레딩 기계, 꽉 찬 플라스틱 박막 문서 분쇄기 기계 신청 플라스틱 덩어리, 금형 소재, 두꺼운 플라스틱, 두꺼운 고무, 곤포로 포장한 패트병, 알루미늄 캔이 곤포로 포장하고 화물, 종이 화물, 마분지 화물, 포대를 촬영하고 곤포로 포장합
칼날재 주문형인 SKD-11, D2, DC53, LD, Cr12MoV / 능력 주문형입니다
모터 22 kw /는 조각 수요에 의존합니다 설치 설치 해외에서 조립도 / 비디오, 지원을 하세요
전압 380 V/50 주문형인 Hz /3 단계 장점 납품 전 100 % 검사 및 품질 보장
하이 라이트

Movable Feeding Hopper Foam Shredder


1200x1200Mm Single Shaft Shredder


PU Foam Bale Single Shaft Shredder

메시지를 남겨주세요
제품 설명

XRM 1200 PU Foam Bale Shredder With Movable Feeding Hopper ,75KW Motor,Shredding Chamber Size 1200*1200 Mm

Compressed Foam Bale shredder , PU Foam Blocks Shredder Machine With Movable Shredding Chamber


Feature & Main Application of the Movable Hopper Single Shaft Shredder

Movable hopper shredders can generally be used to shred hard-to-break plastics, rubber, large bundles of agricultural film/mulching film,foam bale, large hollow molded plastic baskets/plastic buckets, refrigerator shells, washing machine plastic buckets, shoe factory scraps , Packed materials. The mobile feed hopper can greatly improve the efficiency of material shredding and avoid the problem of low shredding efficiency caused by the too small rotating diameter of the knife shaft. Compared with foreign large-swing diameter shredder ,our movable hopper design single shaft shredder is greatly saves customers' purchase cost.

The movable hopper single shaft shredder is especially suitable for shredding large-volume materials, such as plastic pallets, packed PET bottles, chemical barrels, plastic containers and wood.



型号(Model): XRM1200
电机功率(Motor Power): 75kw
动刀数量(Qty of Rotor blades): 56+4 pcs
定刀数量(Qty of Fixed blades): 4 pcs
刀片材质(Materials of blades): Cr12MoV/SKDII/D2
转速(Speed): 80 rpm
进料口尺寸(feeding Size): 1500*1800 mm
主轴回转直径(Diameter of Rotor): 400 mm
撕碎室尺寸(shredding room size): 1200*1200 mm
液压站功率(Hydraulic motor power): 5.5 kw
油缸行程(Cylinder stroke): 1200 mm
设备尺寸(Dimension L/W/H): 4300*2050*2400 mm
设备重量(Weight): 7800 kg


  1. 1. The above machine configuration is the standard configuration of our factory, and the specific configuration will be different for different materials. Please call us for specific conditions or special requirements.
  2. 2. Single-shaft shredder knife holders can be divided into three types: welded knife holders, detachable knife holders and integrated knife holders. For details, please communicate with our company's sales staff to confirm that the knife holders are suitable.
  3. 3. The above technical parameters are for reference only, and are subject to change without notice. Customers please call and confirm with our sales staff before ordering.

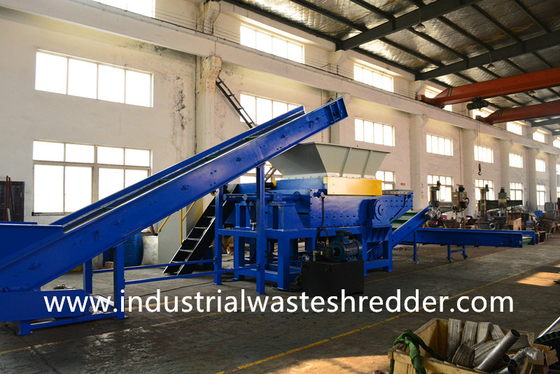

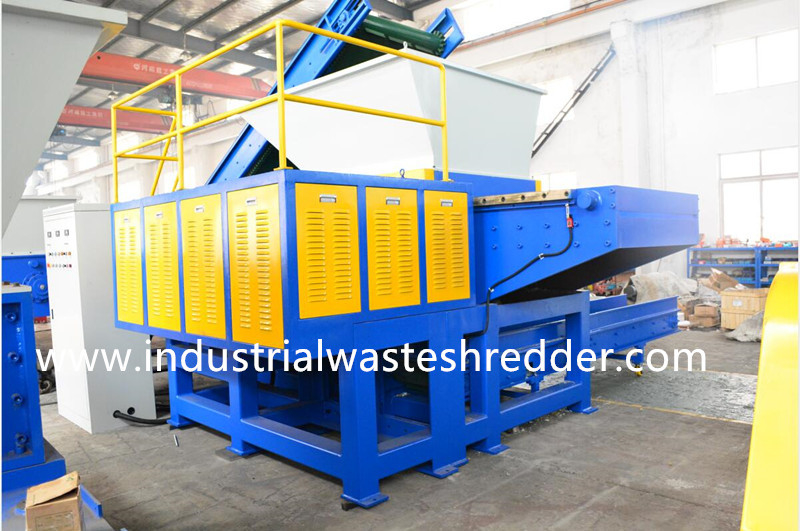

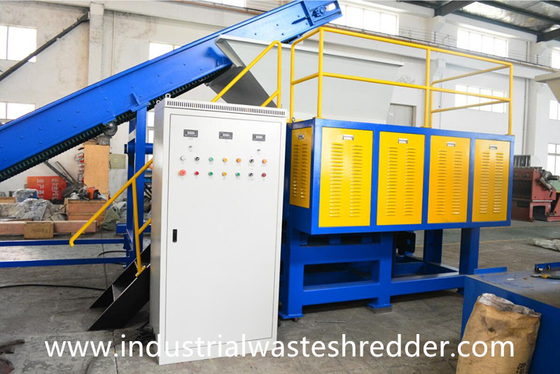

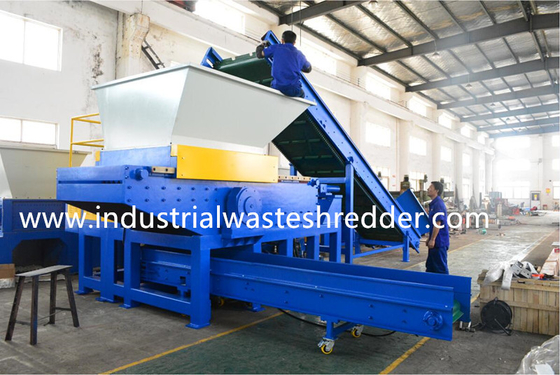

Shredding Sample Case Display

Movable Feeding Hopper PU Foam Bale Single Shaft Shredder 1200x1200Mm 0




Quick details

1. Lead time - 65 working days
2. Payment Term - 30% advanced payment once upon signing the contract,70% balance payment before delivery.
3. Machine Installation

  • a. Almost whole set machine delivery out, very simple for clients to install by themselves and we also offer installation drawing
  • b. If necessary we also support abroad installation

4. Our guarantee period is 12 months. Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors. And technicians are available for solving big problems overseas(this situation never happened ). Beyond the guarantee period the broken parts dispatched are charged at cost price.
